Product Features

1. Adjustable and widely applicable

The track can be freely adjusted and various types and lengths of screws are widely used, such as M1.0-M5.0 standard screws (1.0 1.2 1.4 1.7 2.0 2.3 2.6 3.0 3.5 4.0 5.0), special screws, 1:1 short screws, and screws with washers.

2. Smooth operation

The screws move inside the drum, and any screws that have not entered the track will be removed into the drum and enter the next cycle. There is no jamming of the screws, and the point position will not shake back and forth.

3. Adjustable working speed

The feeding and vibration drive are independently controlled, and the ideal delay stop time can be freely set to adjust the speed of screw feeding, suitable for various operations.

4. Easy to operate

Even beginners can immediately learn the operation method, whether it is metric or imperial specifications, they can operate freely and easily understand.

5. Can significantly improve productivity

No need to align the screw head position, compared to traditional screw discs, each screw can save 1.4 seconds and increase production efficiency by 4 times!

6. It has a counting function (some models)

The counting function automatically alarms and cycles, with a digital display panel for easy visibility.

7. There is a fault alarm function

When abnormal conditions occur, the screwdriver will automatically activate the fault alarm device.

8. Compact in size, not taking up space

Product parameters

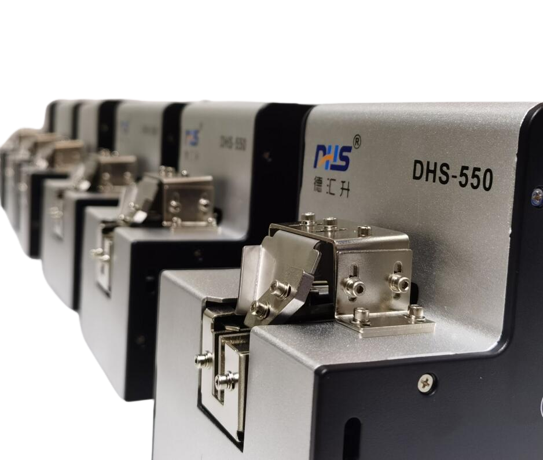

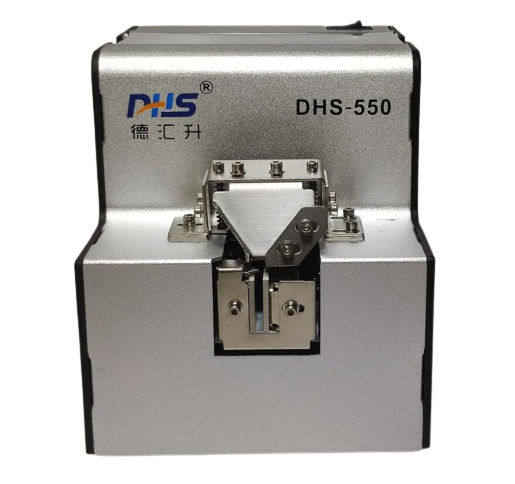

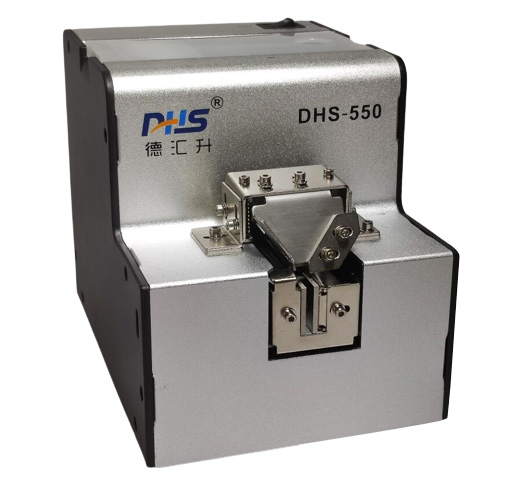

The DHS-550 screw head is suitable for various types of screws (up to L-20mm in length)

Input speed 2 grains/second Input voltage DC 12/800mA

Product size 180mm * 125mm * 150mm (length * width * height) Net weight approximately 2.5kg
