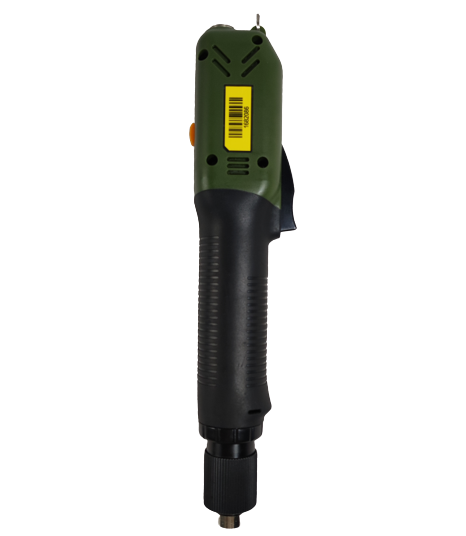

High torque brushless electric screwdriver

Product Features

Adopting high-performance brushless DC motor, it has the characteristics of low interference, low noise, low vibration, long service life, maintenance free, and meets environmental protection requirements.

The control switch adopts Hall magnetic induction switch and Omron micro switch, which not only considers the service life of the switch, but also effectively ensures the reliability of the product during use.

The clutch parts are all precision CNC machined, with high precision, high stability, low noise, low wear, and long service life.

All functional electrical interfaces of the screwdriver are plug-in structures, which can be replaced in seconds. Subsequent maintenance of the screwdriver will not require specialized technology, which can effectively improve maintenance efficiency and reduce maintenance costs.

Reverse switch one key reverse mode, effectively improving the efficiency of reverse operation.

The patented ergonomic design of the appearance effectively improves grip comfort, reduces work fatigue, and enhances production efficiency.

The high-precision and stable fine-tuning test switch power supply allows the screwdriver speed to be adjusted without any speed segments within a certain range, effectively maintaining product flexibility.



Product parameters


modelinput voltage Rated powerRange of torqueTorque accuracy%Torque adjustmentNo load speed(rpm)Applicable screw diameter(mm)weight(g)length(mm)Suitable for screwdriver heads
kgf.cmMechanical teethSelf attacking teeth
D-2430DC36V100W10—30±5无断式1000/20002.6-4.02.6-3.5850285HEX6.35mm (1/4, )
D-2440DC36V100W15—40±5无断式10003.0-4.52.6-4.0HEX6.35mm (1/4, )
D-2450DC36V100W20—50±5无断式5003.5-5.03.0-4.5HEX6.35mm (1/4, )
