Product Features

Exquisite appearance and easy installation.

Can be installed inside the device, with good anti-static effect.

Good power stability and long service life.

Good circuit stability, safe and reliable.

Faster speed, lower balance, and adjustable air volume.

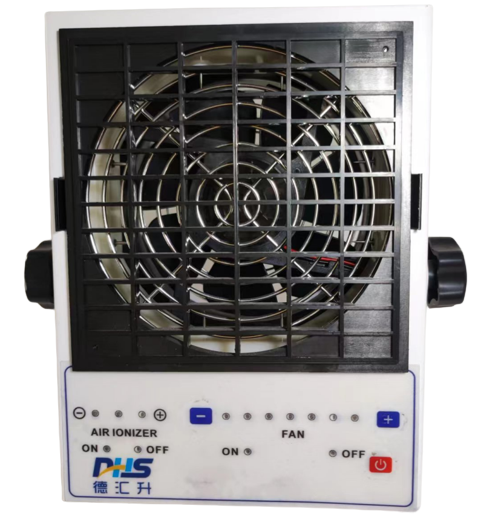

Abnormal alarm prompt for ion fan, convenient for management.

Product parameters

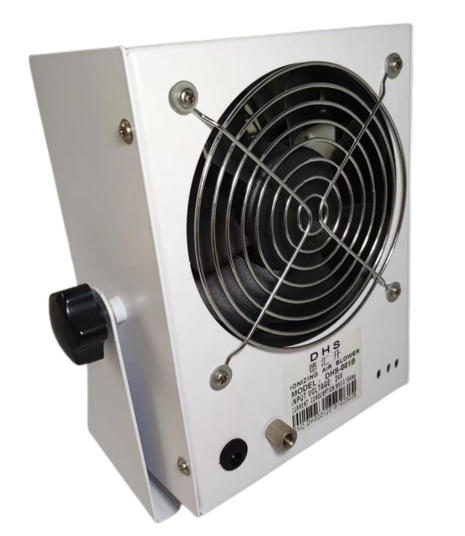

Model DHS-001B Input voltage AC 220V/50Hz to DC 24V

Power 6.5W ion balance ≤ ∣± 10 ∣ (150mm from the testing center in front of the fan)

Power consumption speed ≤ 1.5S (150mm away from the testing center in front of the fan) Effective range 300 * 450mm (L * W)

Wind volume 45-120CFM noise ≤ 35db (150mm away from the air outlet)

Ozone concentration ≤ 0.01ppm (150mm in front of the air outlet) Operating temperature 0-50 ℃

Excluding bracket dimensions of 140 * 100 * 180mm (L * W * H), including bracket dimensions of 200 * 100 * 200mm (L * W * H)
