Product Features

1. Wide applicability

Widely applicable to M0.8-M3.0 screws of various types and lengths, such as special screws, 1:1 short screws, self tapping screws, and screws with washers.

2. Smooth operation

The screw runs inside the drum, and any screw that does not enter the track in the correct direction will fall into the drum and enter the next cycle without any jamming of the screw.

3. Adjustable work efficiency

The feeding and vibration are independently controlled, and the ideal delay time can be freely set; The gear feeding turntable and the four degree indexing disc are independently controlled, and the operating speed can be set according to different screws to adjust the speed of screw feeding and sorting, suitable for various operations.

4. It can significantly improve production efficiency

The screw automatically divides to the feeding port position, allowing for direct feeding without manual calibration, greatly improving production efficiency.

5. It has a counting function

The counting function automatically alarms, cycles, and comes with a digital display panel.

6. It has a fault alarm function

When abnormal situations occur, the screwdriver will automatically activate the alarm device.

7. Compact in size, not taking up space

Product parameters

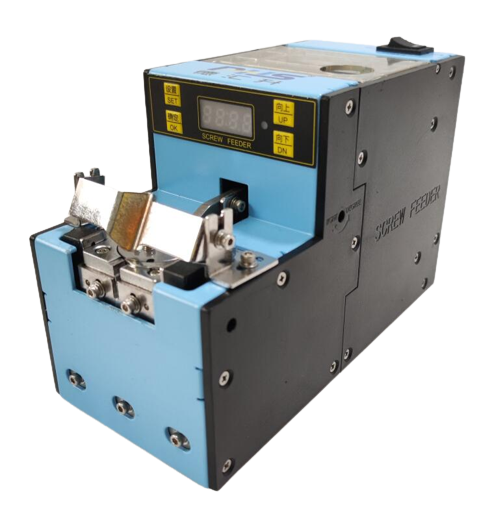

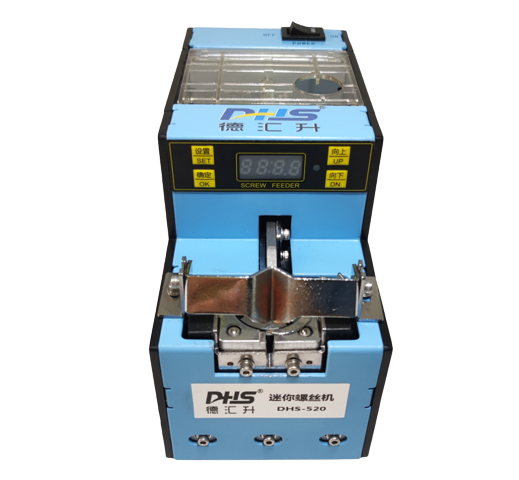

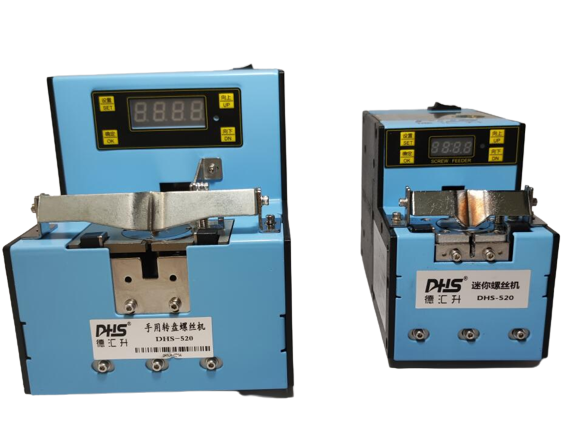

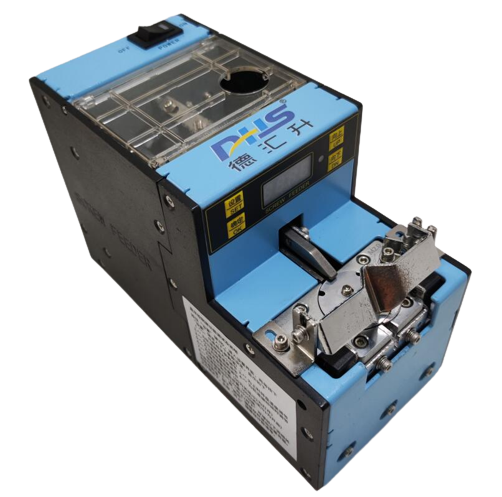

Model DHS-520 Input Voltage AC100V-240V 50/60HZ

Output voltage DC12V 1.5A, output speed 1 piece/second ± 0.3s

Product size 170mm (L) * 80mm (W) * 128mm (H) Net weight approximately 2kg

Suitable for screws M0.8 to M3.0 with a maximum screw length of L=6.0mm
