Product Features

Clear numerical display, easy to read, accurate.

Due to the ability to maintain and display the maximum torque value, precise torque can be set using a horse tool;

The measuring instrument can work clockwise and counterclockwise, so it can measure the torque of tightening and loosening;

The mechanism is simple and sturdy, and the tension instrument is directly connected to the torque testing section. The instrument conforms to the statistical program control system;

Analog output has multiple applications: waveform observation, recording and judgment of measurement data; The instrument is compact, lightweight, and powered by rechargeable batteries, making it easy to carry.

Product parameters

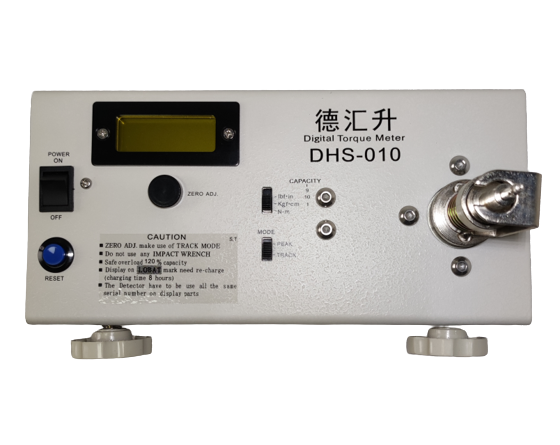

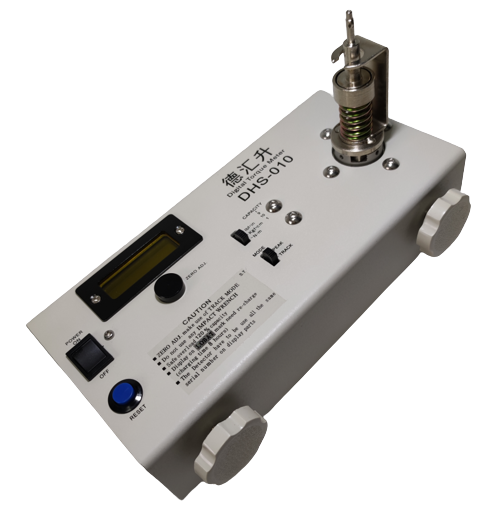

Model DHS-010 measures kilogram force. cm Kgf.cm 0.15-10.00

Newton meters N.m 0.015-1.0 range pound force. inches Lbf. in 0.15-9.00

Accuracy within ± 1%, power supply 1.2 volts, 5 Nicd batteries

Response frequency of 600 Hz. With sufficient power, it can be used continuously for 30 hours

Charging time within 8 hours, using a dedicated charger with a battery life of over 300 rechargeable times

Volume 123 * 230 * 65mm Weight 1.8 kg

Dedicated charger input: AC 220-240V input: AC 100-120V

Output: DC 7.2V 120mA Output: DC 7.2V 120mA
